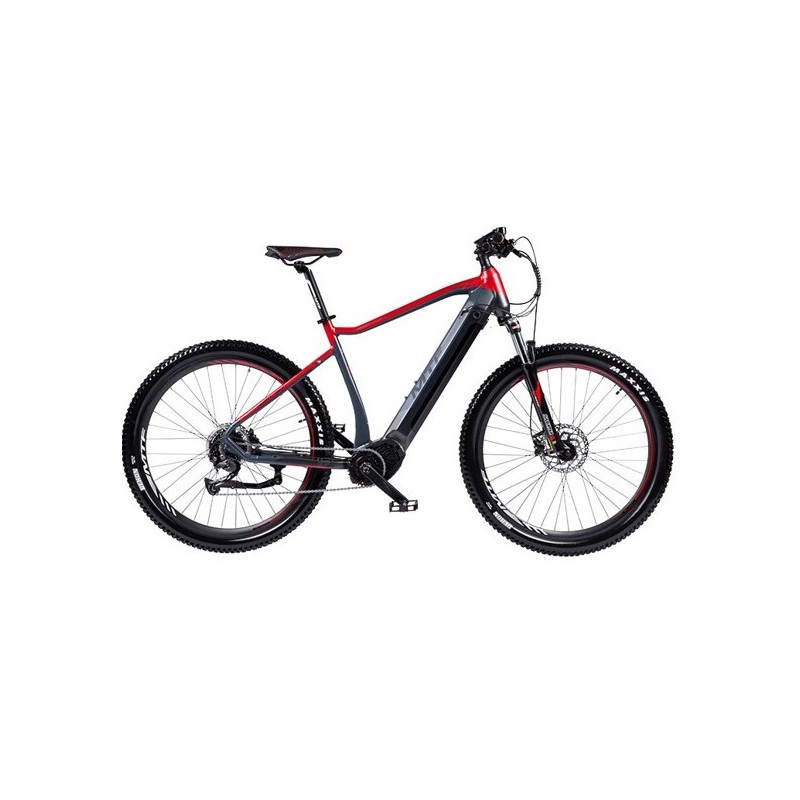

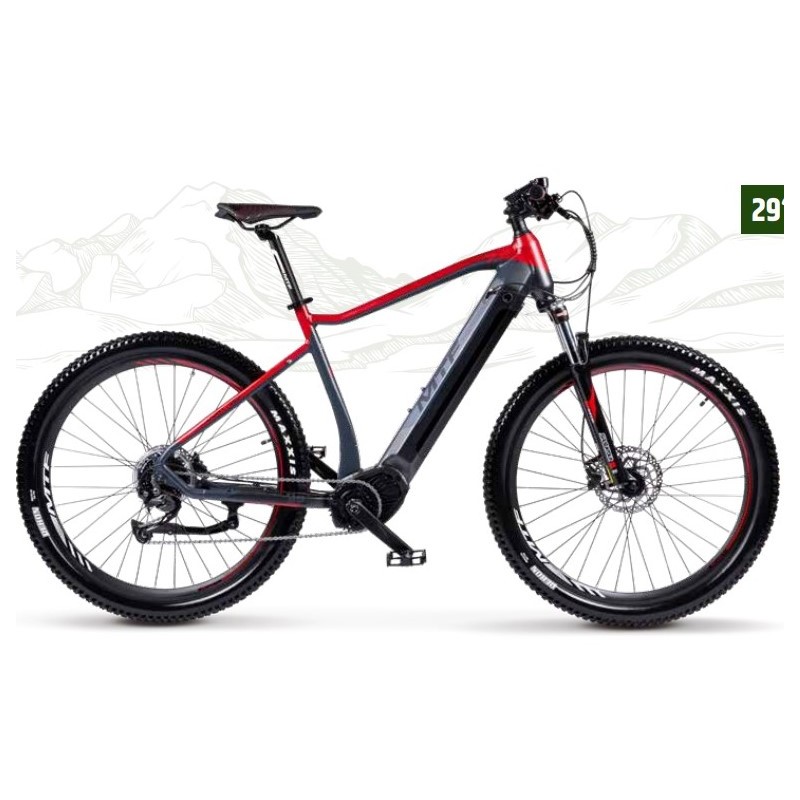

MTF Mount 7.4 29 Inch 522Wh 36V/14.5Ah Frame 21' Electric Bike MTF Mount 7.4

MTF Mount 7.4 29 inch 522Wh 36V/14.5Ah Frame 21' electric bike.
This electric mountain bike for sports driving enthusiasts is equipped with a Bafang M510 motor and a Samsung battery. Very powerful, this mountain bike offers five pedal assistance modes and an average range of 110 km.

Technical description:
-Mark: MTF
- Category: Mountain Bike Sports
- Reference: MTB MOUNT 7.4
- 21-inch mountain bike
- Frame: Aluminum
- Bafang M510 mid-engine
- Speed: 9
- Derailleur: Shimano Alivio RD-M3100
- Engine torque: 95 Nm
- Max. range: 110km
- Battery: 36V/14.5 Ah (522 Wh) Li-ion battery SAMSUNG cells included
- Crutch included
- Warranty: 2 years.

The Mount 7.4 Black and Red mountain bike is ideal for your walks in the forest or in the mountains.
With its frame in size 21 inches and equipped with 29-inch wheels with MAXXIS REKON tyres and FreiNS hydraulic disc Shimano BR-MT201, all complemented by a Suspended fork SR Suntour XCM RLO.
The Shimano Alivio RD-M3100 rear derailleur will allow you to enjoy 9 speeds mechanical, in addition to 5 pedal assist modes Cycling.

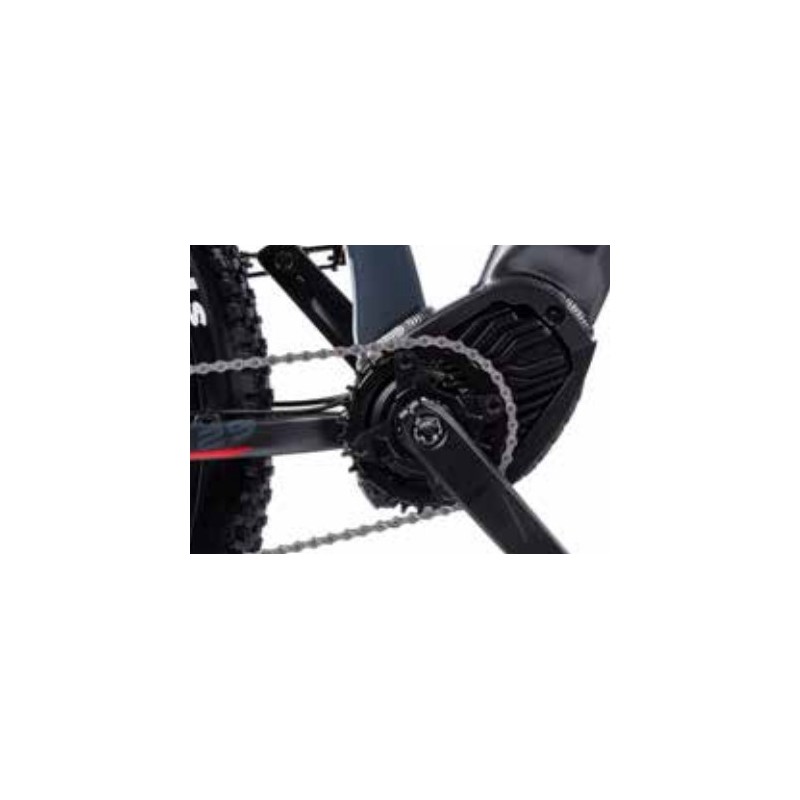

The Mount 7.4 electric mountain bike is equipped with a Bafang M510 motor with a power of 250 W (torque of 95 Nm) which will allow you to benefit from a smooth and smooth pedaling aid, for a pleasant ride.
This motor, located in the pedals of the bike, is coupled to Sensors whose role is to regulate the pressure on the pedals and provide assistance proportional to pedaling effort.

The engine of the ATV is powered by a Samsung 36V / 14.5Ah li-ion battery whose capacity you can choose in order to enjoy more or less autonomy.
Note, however, that the range of an electric bike battery depends not only on its capacity, but also on the pedal assist mode selected, the weight and type of riding of the user as well as the type of terrain.
Located in the Aluminum frame From the bike, this battery is easy to access in order to be easily recharged.

This MTF electric bike is delivered pre-assembled but the assembly of the front wheel and pedals will have to be done by you.

Technical specifications:
Brand: MTF Reference: MTT MOUNT 7.4W
Material: Alu 6061 frame
Frame: 21"
Wheel: 29"
Battery: Li-ion battery 36V/14.5 Ah (522 Wh) SAMSUNG cells included
Range : 110 km
Central motor with BAFANG M410 pressure sensor (250W/max.500W, 95 Nm)
Speed: With assistance. up to 25 km/h

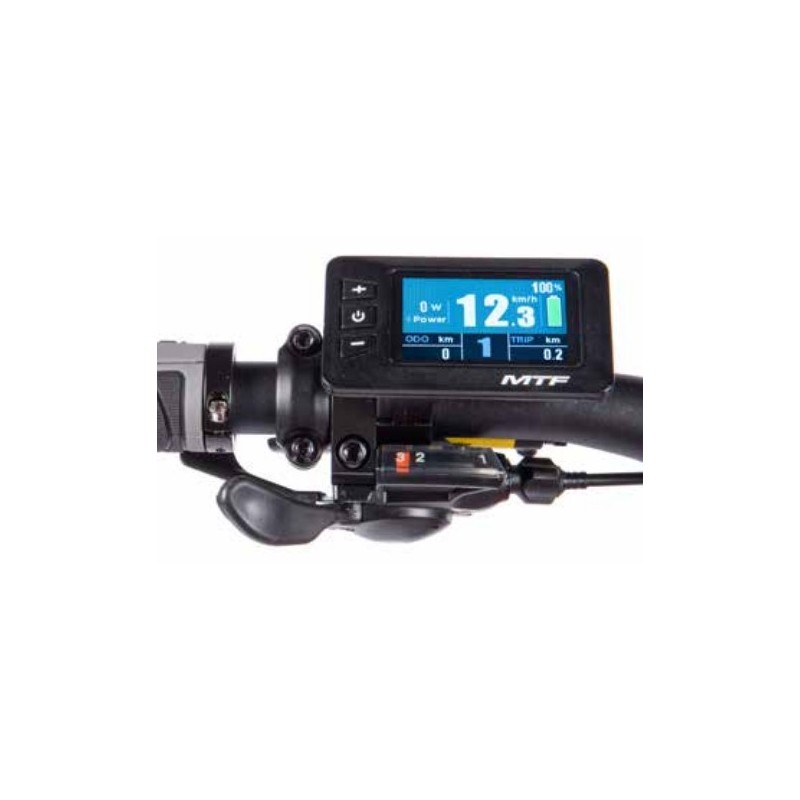

Screen: Color LCD, 5 degrees of assistance
Load Capacity :120 kg
Weight :18.9 kg
Fork: SR SUNTOUR XCM RLO, travel 100 mm, lockable.
Maoteur: BAFANG (38 teeth), Crank: 170mm
Rear derailleur: SHIMANO Alivio RD-M3100
SHIMANO Alivio SL-M3100 Joysticks, 9 Speeds
Cassette: SHIMANO Alivio/Deore CS-HG400 (11 - 36 teeth/Zähne)
Channel: KMC X9E
Brakes: SHIMANO BR-MT201, Hydraul. Disc brake
Front hub: NOVATEC D761DSE
Rear hub: NOVATEC D762TSE
Rims: Felgen ALEX, 36H, 622x21
Spokes: "SAPIM, reinforced (14G, diameter 2 mm), black stainless steel
Tyres: MAXXIS REKON 29*2,40
Pedals: Aluminum, ball bearings
Handles with MTF SportGrip
MTF Sport handlebars (760 x 31.8 mm)

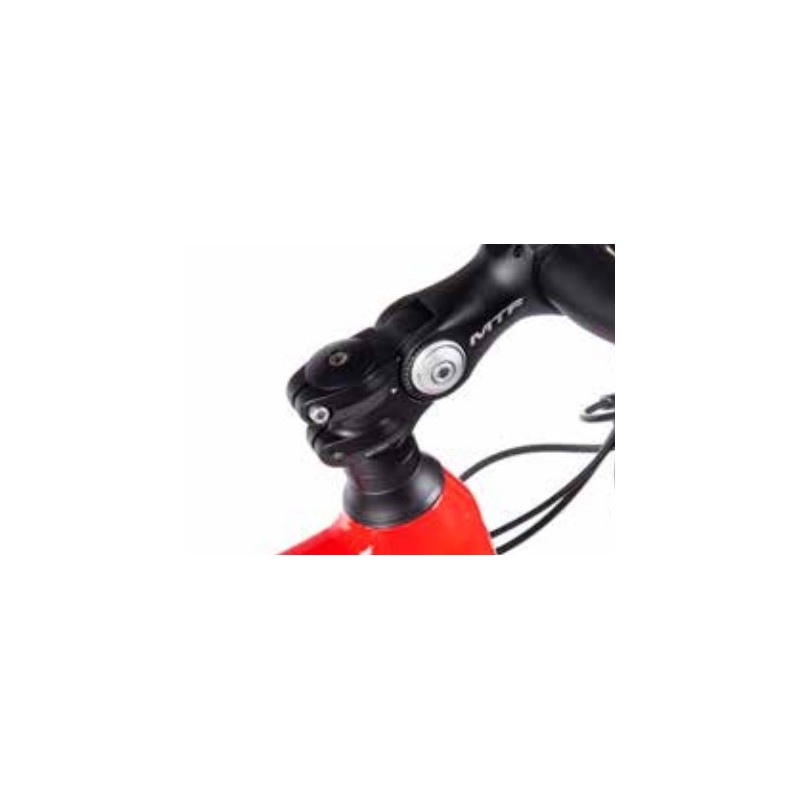

Stem :MTF Sport (31.8, length L60 mm)
Steering set: NECO, semi-integrated 1 1/8'', black
Seatpost: MTF (30.4 / 400 mm)

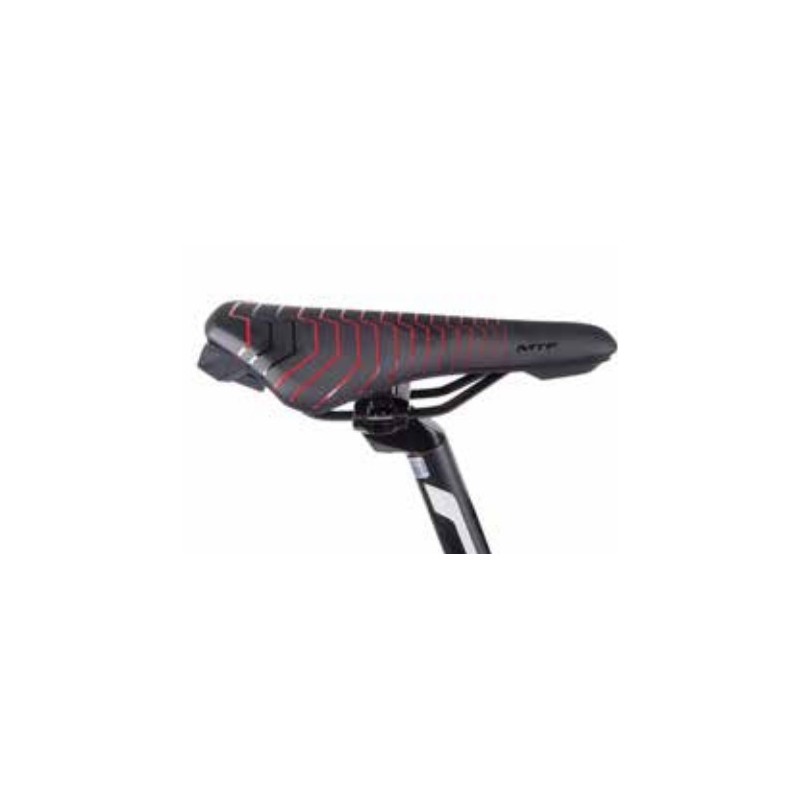

Saddle: MTF NoPressure Sport
Charger: MTF 36V / 3A
Color: Black-Red
Warranty: 2 years.

Note: Recording and control.
It is essential to have your bike identified as soon as it is received by a Bicycode® number and to register it in the national file. This service is carried out by a professional: on presentation of the invoice we undertake to reimburse you a flat rate of 15 € * TTC maximum (*package of 15 € Ttc or the equivalent in foreign currency chf/£/$).
The Bicycode® is a code written on the frame of a bicycle, in order to deter theft and facilitate its return in case of theft.

Upon receipt of your MTF electric bike and before any use, it is necessary to have your bike checked and adjusted by a Bicycle Professional (mechanic, bike mechanic) to help you in its handling, and also to validate the warranty clauses, as well as for safety reasons.
This check/maintenance can be reimbursed upon presentation of invoice within 45 days after receipt of the bike and up to a maximum of 45 €* Ttc (*package of 45 € Ttc or the equivalent in foreign currency chf/£/$).
