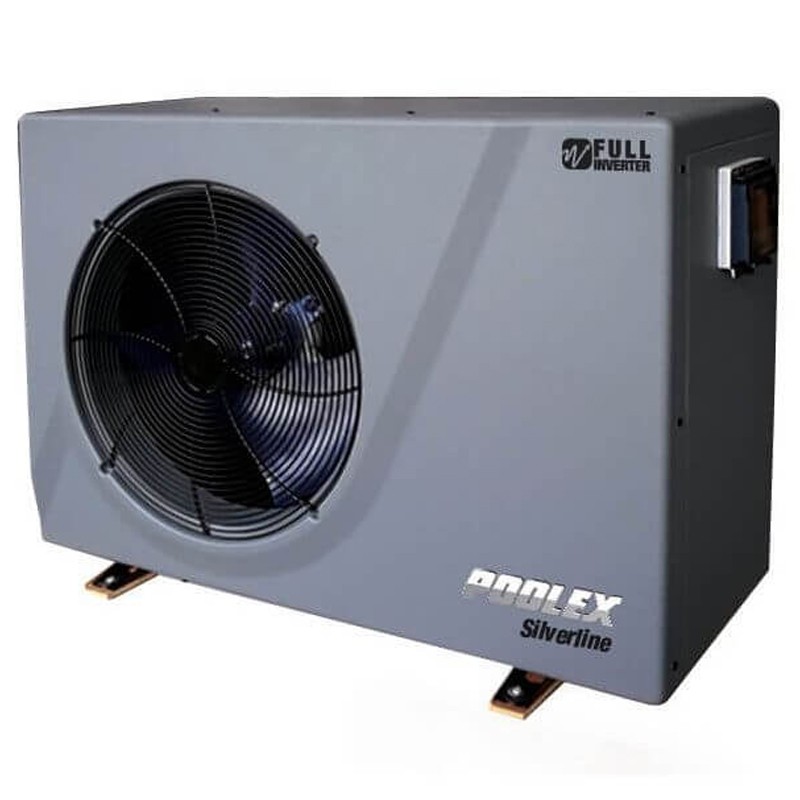

Poolex Silverline Fi 70 Full Inverter Pool Heat Pump

Poolex Silverline Fi 70 Full Inverter Pool Heat Pump
The Poolex Silverline FI 70 heat pump (Full Inverter) is designed to heat a pool up to 45 m3 (depending on the region).

The new Poolex Silverline Fi pool heat pump makes Full Inverter technology accessible to as many people as possible. Its performance levels rank among the highest on the market with a maximum COP of 12.9, or up to 92% of natural and free energy. Its operation is also ultra silent with 19 dBA to 10 m (in Eco mode).

The Silverline Fi 70 heat pump is intended for heating swimming pools up to 45 m3 (depending on the region, see sizing table). Its latest-generation components provide the best performance and high reliability: Toshiba inverter dual rotor compressor (variable speed), variable speed fan, Twisted Tech titanium interchange, R32 refrigerant (more efficient and environmentally friendly), remote Wi-Fi control, etc.

Full Inverter technology offers many advantages: significant reduction in electricity consumption (from 25% to 35%), higher lifespan and very quiet operation.

The Silverline Full inverter range of pool heat pumps comes in 5 powers from 7 to 20 kw (monophased).

The benefits of the Poolex Silverline Fi 70 heat pump
- COP up to 12.9: or 92% natural and free energy
- Full Inverter technology (variable speed compressor and fan): quieter and more economical
- Ultra-silent operation: 19 dBA to 10m in Eco mode
- 5-mode reversible model: Auto / Boost / Eco / Heating / Cooling
- Wi-Fi command: remote control by smartphone (iOS / Android)
- Toshiba Inverter double rotary compressor (variable speed)
- Twisted Tech Titanium heat exchanger with Poolex antifreeze technology
- More efficient and environmentally friendly R32 refrigerant gas
- Automatic cycle reversal de-icing function
- Operating from -7oC of outside temperature
- Simple and intuitive Touch-Go programming
- Reinforced ABS body (anti-UV)
- Compatible with all treatments (salt electrolyr, chlorine, bromine, ...)

How do you choose your heat pump?
Size your Silverline Full Inverter heat pump
The sizing of a heat pump is crucial to take advantage of all its advantages: efficient heating, low electricity consumption, long life and quiet operation. Conversely, the choice of too low power will cause the opposite effects: long and pushy heating, high electricity consumption, a reduced lifespan, ...

The table below guides you in choosing the right power depending on your region and the volume of your pool.
These calculations take into account the presence of a blanket on the surface of the pool during the night (bubble sheet, shutter, ...). Without coverage, the power of the heat pump must be doubled due to the calorific losses to be expected.

General Features Poolex Silverline Full Inverter 7 kW Monophasée
- Power supply: 230 V / 50 Hz single-phase
- Cable section to be expected: 3 x 2.5 mm2
- Hydraulic connection: PVC - 50 mm
- Heating temperature range: 15cC / 40C
- Operating range: -7C / 43C
- 5-mode reversible model: Auto / Boost / Eco / Heating / Cooling
- LCD programming screen (possibility of deporting it up to 10 m)
- Built-in Wi-Fi module: remote control via smartphone
- R32 refrigeration gas: more efficient and environmentally friendly
- Reinforced and anti-UV ABS body
- Built-in flow detector
- Certifications: standard E.U. and T.U.V.
- Guarantees: General 2 years, Compressor 5 years, 15-year counter-corrosion

Accessories included
- Insulated wintering cover
- PVC Connectors Diameter 50 mm / 1"1/2
- Anti-vibration support kit
- Condensate evacuation pipe
- Extension to deport wired control (10 m)
- Manual and maintenance box

Poolex Silverline Fi 70 Technical Features
Pool volume: 30 to 45 m3
MAX COP: 12.9
Maximum power consumed (kW): 1.33 Kw
Max Intensity (A): 6.05 A
Water flow required: 2 - 4 m3/h
Dimensions (L x P x H): 824 x 334 x 656 mm
Dimensions in inches: 32.44" x 13.14 x 25.82"
Packaging Dimensions (L x P x H): 886 x 404 x 778 mm
Inches packing dimensions: 34.88" x 15.90 x 30.62"
Noise at 1m (Eco - Boost): < 37 dBA - < 50 dBA
Noise at 10m (Eco - Boost): < 19 dBA - < 29 dBA
Compressor type: Double rotary
Compressor brand: Toshiba
Interchange: Titanium Twist Tech

Poolex Silverline Fi 70 Performance
Air 26oC / Water 26oC / Hydro 80%
Max Returned Power (kW): 6.8 kW
Min Returned Power (kW): 1.94 kW
Power consumed (kW): 1.05 kW
COP Max - Min: 12.9 - 6.47

Air 15OC / Water 26oC / Hydro 70% (Standard EU)
Max Returned Power (kW): 5.2 kW
Min Returned Power (kW): 1.35 kW
Power Consumed (kW) Max - Min: 1.11 kW
COP Max - Min: 6.4 - 4.6

Electrical equipment to be expected
- C 10 A curved magnetothermic circuit breaker
- POWER cable RO2V 3 x 2.5 mm2
- The heat pump must be connected to a 30-milliampere differential upstream

Guarantee: 2 years
Several choices and versions available on request.
