Sand Filter Pump 9m3-h PoolFilter 70m3 Ubbink

Sand Filter Pump 9m3-h PoolFilter 70m3 Ubbink.
The Ubbink PoolFilter 500 filtration unit offers a flow rate of 9 m3/h. It is specially adapted for the filtration of an above-ground pool thanks to the fittings supplied in Ø 38mm and 50mm. We recommend it for a swimming pool of 25 to 50 m3 of water volume.

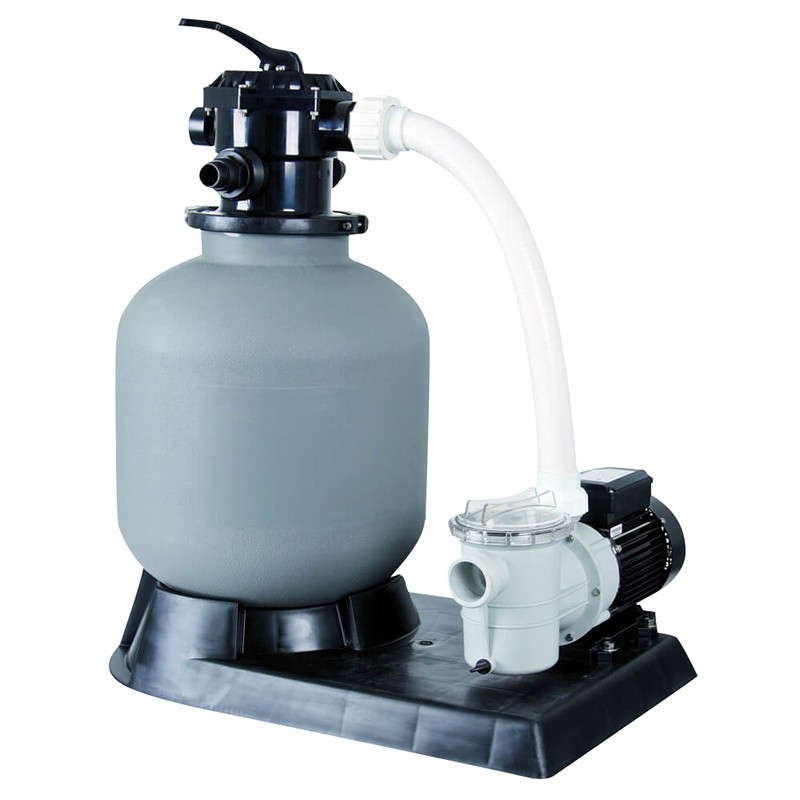

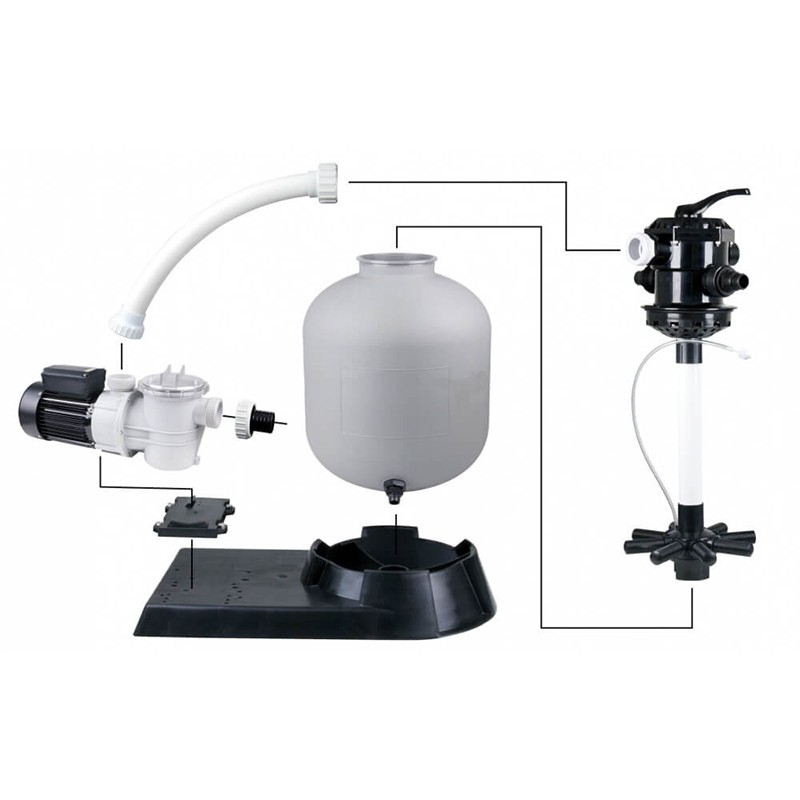

The Ubbink PoolFilter 500 filtration kit consists of an Ø 500 mm sand filter, a Poolmax TP75 filtration pump (0.75 hp) and a TOP 6-way valve. Filter media (sand/gravel or glass) is not provided.

Technical characteristics of the filtration unit:
Pool filtration pump with pre-filter
Max flow rate: 14,400 l/h
Rated power: 0.75 HP/0.56 KW
Protection: IPX5
Warranty: 2 years
Fitting included: 2 x D.38 mm + 2 x D.50 mm
Plug with short circuit current protection switch (DDR),30 ma, IP54,-25°c
Sand filter:
Filter outer diameter: 500 mm (19")
Flow rate (water column 8 m): max. 9 m3/h
System pressure: max. 3.5 bar
Filling with filter silicieux sand (not supplied): max. 75 kgSeed of sand (EN 12904:2005) 0.40 – 1.25 mm
6-way valve:
Suction and discharge fittings: 1 1/2"
Functions: Winter / Filtration / Washing / Rinsing / Circulation / Closed
Weight: 40 kg

Brand: Ubbink
The German brand Ubbink, created in 1896, provides you with the necessary solutions for your pool creations or your aquatic decorative atmospheres. Its robust and innovative products as well as its technological experience give it its leading position in Europe in the market for above-ground swimming pools and water features.
