Wood Insert La Nordica Right Angle Monobloc 800 DX 10kW Black

Wood insert La Nordica Right Angle Monobloc 800 DX 10kW black.
The La Nordica One-Piece Wood Insert Right Angle is made of cast iron with the lift-up glass.
With a nominal power of 10kW which allows you to heat about 287m3.
The Insert uses wood logs up to 30 cm.

Wood Insert La Nordica Right Angle Monoblocco 800 DX 10kW black on feet.
- Pull-out ash drawer
- Cast iron fireplace lining/ Nordiker
- Cast iron structure
- Hood made of special 3 mm thick steel
- Cast iron fireplace floor and grate
- Adjustable primary and secondary air
- Afterburner system (low emissions)
- One-piece lift-up ceramic glass
- Door with total slide on silent slides.

The ideal solution for your fireplace insert:
Warmth, ambience, elegance: the light of the fire lit inside a fireplace always creates a magical atmosphere.
But every house, every room has its needs and La Nordica-Extraflame offers a solution for each of them to heat your home efficiently and ecologically.
Monoblocks are chimneys with a retractable "top and bottom" opening.
They have a housing covering the mechanisms and a self-supporting structure.

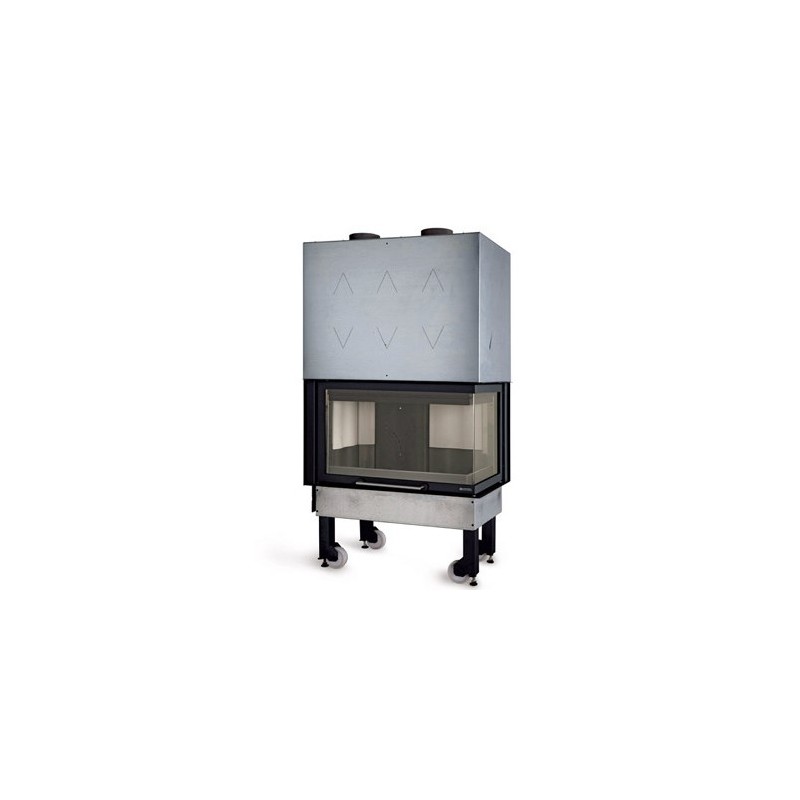

The monobloc is adjustable in height and on wheels for easy positioning.
For these elements, it is always necessary to provide a dedicated structure (formwork) for the lining of the heat generator.

Post Combustion System : This combustion system developed by La Nordica-Extraflame allows, thanks to the secondary/tertiary air system, an afterburner capable of reducing emissions and therefore complying with European standards.
The Insert Door, made of high-quality cast iron, are unalterable over time and guarantee constant watertightness.
Clean Glass Control : This system of the specific preheated air path effectively avoids the clogging of the fireplace glass.
Radiant System (PRS):High-efficiency heat exchanger system that ensures heat transmission to the ambient air.
NORDIKER : For the refractory parts, the La Nordica brand has patented this ultra-resistant material that can withstand very high combustion temperatures.
The light colour of the material intensifies the brightness of the flame and offers simplicity of maintenance.
BBC Direct External Air Intake:
An air intake system that takes fresh air from outside for combustion, introducing it directly into the combustion air dampers of the appliance.

Technical features:
Overall heat output: 10 kW
Rated power: 12.4kW
Heating volume: 287 m3
Efficiency: 80.9%

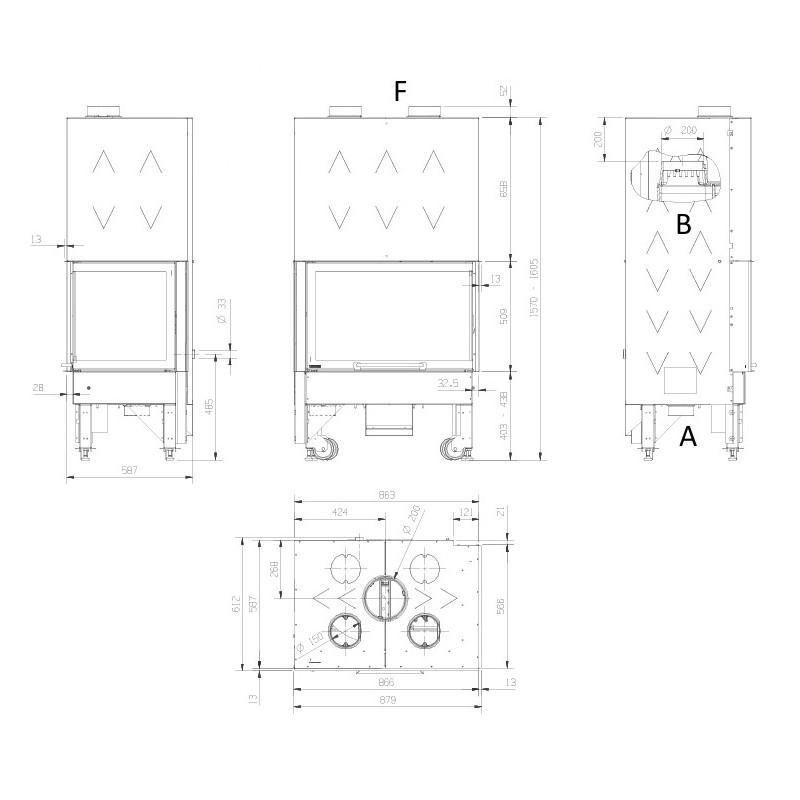

Dimensions: W 879 x H 1570-1605 x D 612 mm
Dimensions of the fireplace: W 866 x H 509x D 587 mm
Weight: 271 kg
Consumption: 2.9 kg/h
Energy efficiency class: A+
Smoke outlet diameter: 200 mm
Air inlet diameter: 100 mm
5-year warranty
Several choices and versions available on request. version on the left.

- Optional ventilation with optional accessories (Crankcase + Ventilation Kit or Wind Air Kit) on request.

- Green Flame, a French certification that guarantees quality, efficiency and high performance of products
- EN-13229, European standard for inserts (including open inserts) using solid fuels.
- I.Bim SchV, a German standard that regulates emissions and emissions in line with climate protection targets.
- EcoDesign, green design requirements for biomass boilers and heaters, in force since January 1, 2022.

All Nordica Extraflame brand products are guaranteed by the manufacturer for 5 years.
Enameled cast iron, when used correctly, has an almost unlimited lifespan and requires minimal maintenance.

Installation and Warranty : The installation must comply with the instructions for use (manufacturer's recommendation) and must comply with the standards in force in the country (in compliance with D.T.U 24.1 or 24-2 for France).
As with all wood or pellet stoves, the appliances are to be adjusted according to the natural draft of your installation.
