Pool Wood Ubbink Océa 470X860 H130cm Liner Blue

Pool Wood Ubbink Océa 470X860 H130cm Liner Blue.

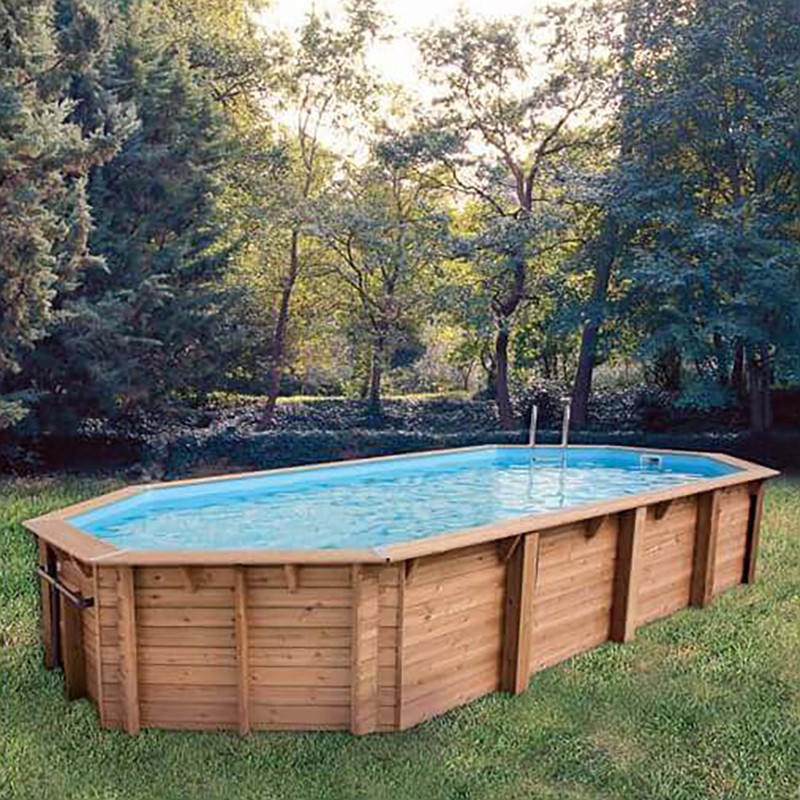

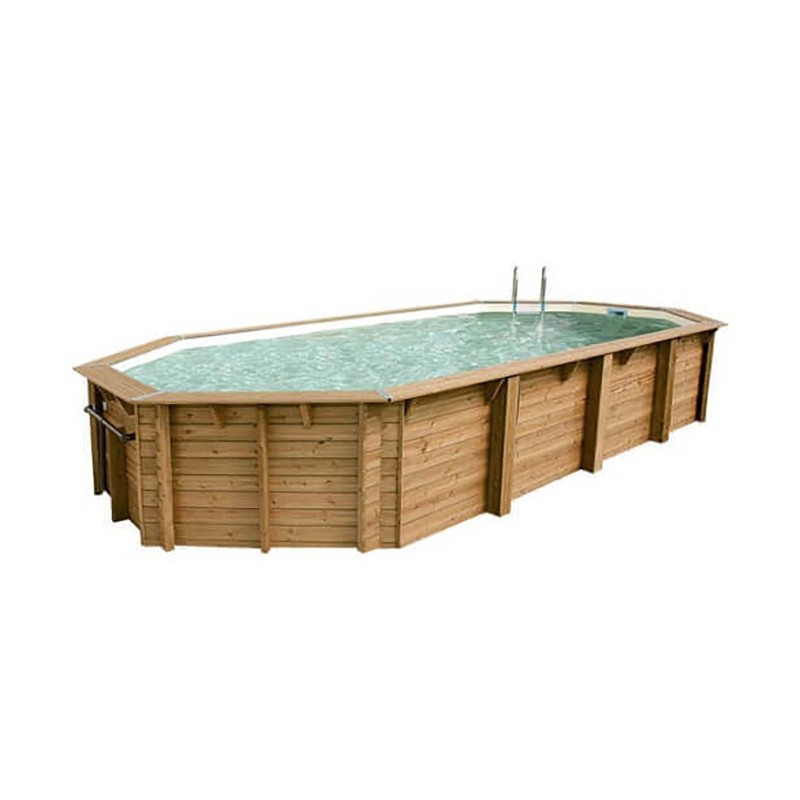

Wooden pool Ubbink Océa 860 x 470 octagonal shape. Delivered as a complete kit including structure, filtration and accessories.

Ubbink, manufacturer of swimming pools since 1970
By choosing a product from the Ubbink brand, you invest sustainably in a space of well-being, conviviality and happiness for your garden. All above-ground wooden pools are designed with robust and quality materials, designed to meet the needs of young and old, able to withstand time, bad weather and the great moments of life.

Particularly keen to support pool owners at every stage, Ubbink offers a range of ancillary services including assembly assistance, comprehensive warranties and a responsive and efficient after-sales service.

Privileged partner of the brand, Mypiscine ensures a sustainable availability of products, accessories and spare parts; a constant maintenance of delivery times even in the heart of summer as well as a perfect knowledge of the products and their specificities to advise you at best. This ensures that you speak with a qualified and competent professional.

Presentation of the pool Ubbink Océa 470 x 860 cm
The Océa range offers quick and simple models to install with perfect dimensions for small gardens while respecting small budgets. Available in different shapes and heights, you will undoubtedly find the model best suited to your needs and those of the whole family.

The Océa 470 x 860 model is one of the flagship models of this range with a swimming area of 30 m², ideal for installation in a small garden. Delivered as a complete kit including structure, liner and filtration, it is ready to be installed. With a height of 130 cm, the Océa 470 x 860 cm wooden pool is perfect for young and old to swim without risk under the supervision of an adult.

Characteristics:
Size
External dimensions: 470 x 860 cm
External dimensions in inches: 185.03" x 338.58"
Interior dimensions: 420 x 810 cm
Interior dimensions in inches: 165.35" x 318.89"
Floor area required: 500 x 890 cm
Regarding the dimensions of the concrete slab, please refer to the instructions - Be careful to make a reservation for the metal cradle
Height: 130 cm
Height in inches: 51.18"
Useful water height: 115 cm
Water volume: 34.5 m3
Swimming area: 30 m²
Unit weight: 100 kg
Equipment and materials
Pine structure from northern European forests (FSC)
Treated wood with class IV autoclave treatment
Plank thickness: 45 mm

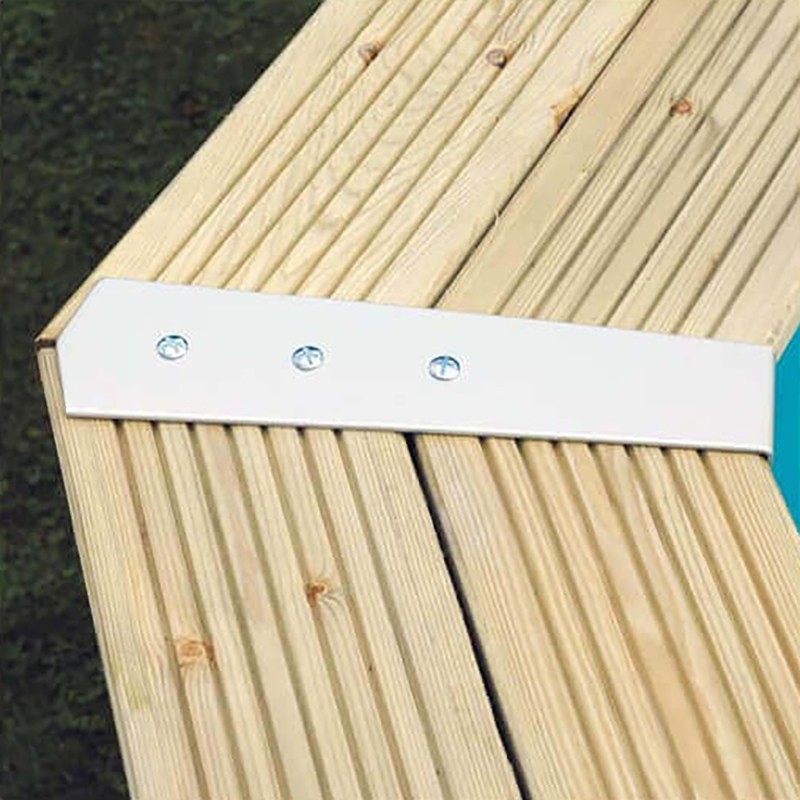

Double northern fir margin, ep. 27 mm

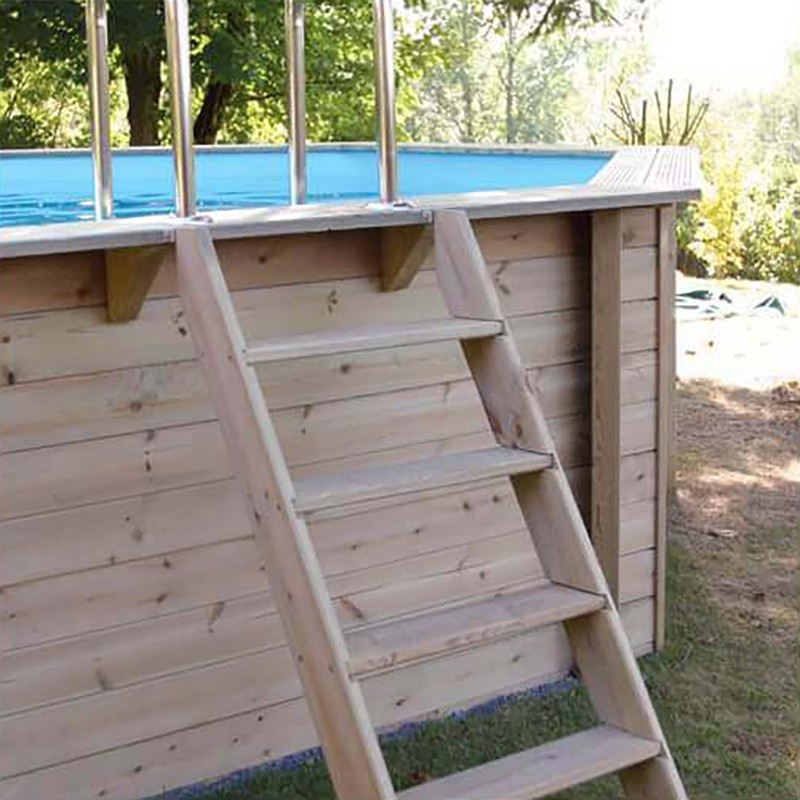

Outdoor wooden ladder 4 steps (removable)
Flexible Hose: 50 mm, 25 m
Stainless steel screws
Liner 75/100 th
Anti-bacterial bottom felt 200 g/m²
Wall felt 170 g/m²
1 skimmer & 2 discharge nozzles
Interior ladder Stainless steel 3 steps
Rigid Hose: 50 mm, 6 m
Technical data
Filter diameter: Ø 500 cm (19")
Filter flow rate: max. 17 m3/h
System pressure: max. 3.5 bar
Filtration fineness: 26μm
Silicafiltizing sand filter supplied - 0.40 – 1.25 mm
Poolmax TP75 filtration pump
Rated voltage/frequency: 230 VAC / 50 HZ
Rated power: 0.75 HP / 0.56 kW
Filtration unit flow rate 9.0 m3/h
Plug with short circuit protection (DDR) 10 mA, IP54
Guarantees
Wood frame warranty: 15 years against rot and insect attacks.
2-year warranties: Filtration, Liner and accessories.
Products complying with FR and EN standards.

Installation recommendations:
It is essential to define the location of your pool taking into account the exposure and the quality of the soil. You will have to be careful not to install the pool on unstabilized or recently backfilled ground. The manufacturer also advises you to make a concrete slab having previously upgraded the land.
In case of sloping terrain, it is imperative to unload it to level it. Do not backfill your land to level it.

CAUTION: Place a high-density polyethylene growth sheet (not supplied) on the outer wall to drain rainwater. The height of the film must correspond to the level of the embankment. Without the presence of a draining tablecloth, the 15-year warranty covering the wooden structure may not be maintained by the manufacturer.

Assembly assistance and technical questions:
For any additional information or assistance during assembly, a support service is available from Monday to Saturday, from 9am to 6pm. The number will be communicated to you upon receipt of the order.
To ensure a simple and serene delivery, the carrier service will contact you to arrange an appointment according to your availability. On the day of delivery, the delivery person presents himself with a truck equipped with an on-board trolley in order to deposit the pool as close as possible to his place of installation.
If your home is difficult to access, do not hesitate to check in with our advisors to find the best delivery option. The seller can not be held responsible in case of inaccessibility of the home.

The delivery rate indicated is valid only for metropolitan France (excluding Corsica and islands).
We deliver on request all destinations in Europe and Switzerland (delivery rate on request depending on your geographical area).
